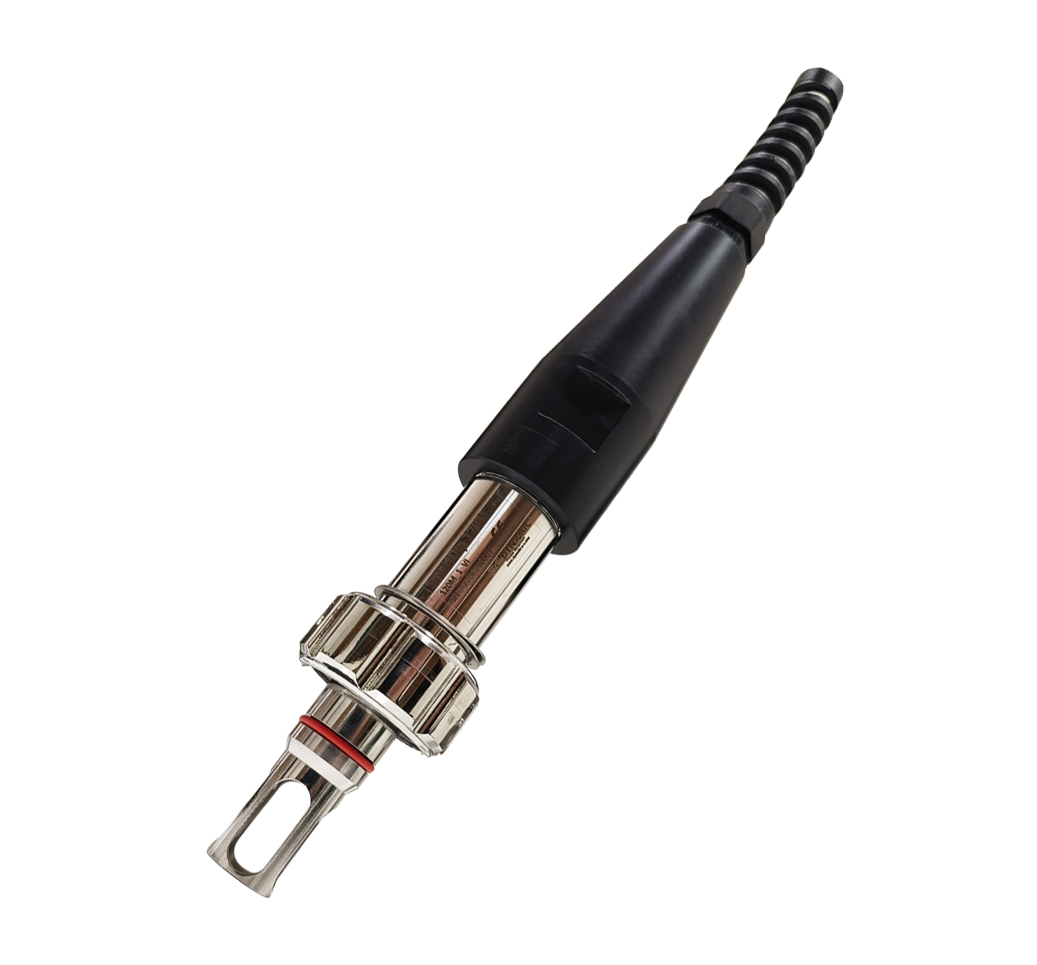

SmartDip 120M — Static Electrode Fitting, G1-1/4″ Ingold Adapter

DynamicPE SmartDip 120M is a static electrode housing designed for Food, Beverage, and Bio-Pharma applications. Its all-metal SS316L body mounts directly through a standard DN25 Ingold welded socket on fermenters and bio-reactors, providing a stable, hygienic interface for in-situ pH and dissolved oxygen measurement. The housing is engineered to protect the sensor tip from abrasion and mechanical damage while maintaining a leak-tight seal across demanding process conditions.

Key Features:

• Machine-finished SS316L body with surface finish Ra < 0.3
• Process connection: G1-1/4″ Ingold Cap (DN25 welded socket)
• Immersion length: 70 mm · O-ring position: 28 mm
• Compatible sensor: 120 mm ø12 PG13.5
• Pressure rating: 0–10 Bar
• Process temperature: up to 140 °C
• Sealing options: EPDM, FPM (Viton), FFKM (Kalrez)
• Optional sensor tip protection cage
• Applications: Bio-Pharma, Food & Beverages, Dairy Industry
