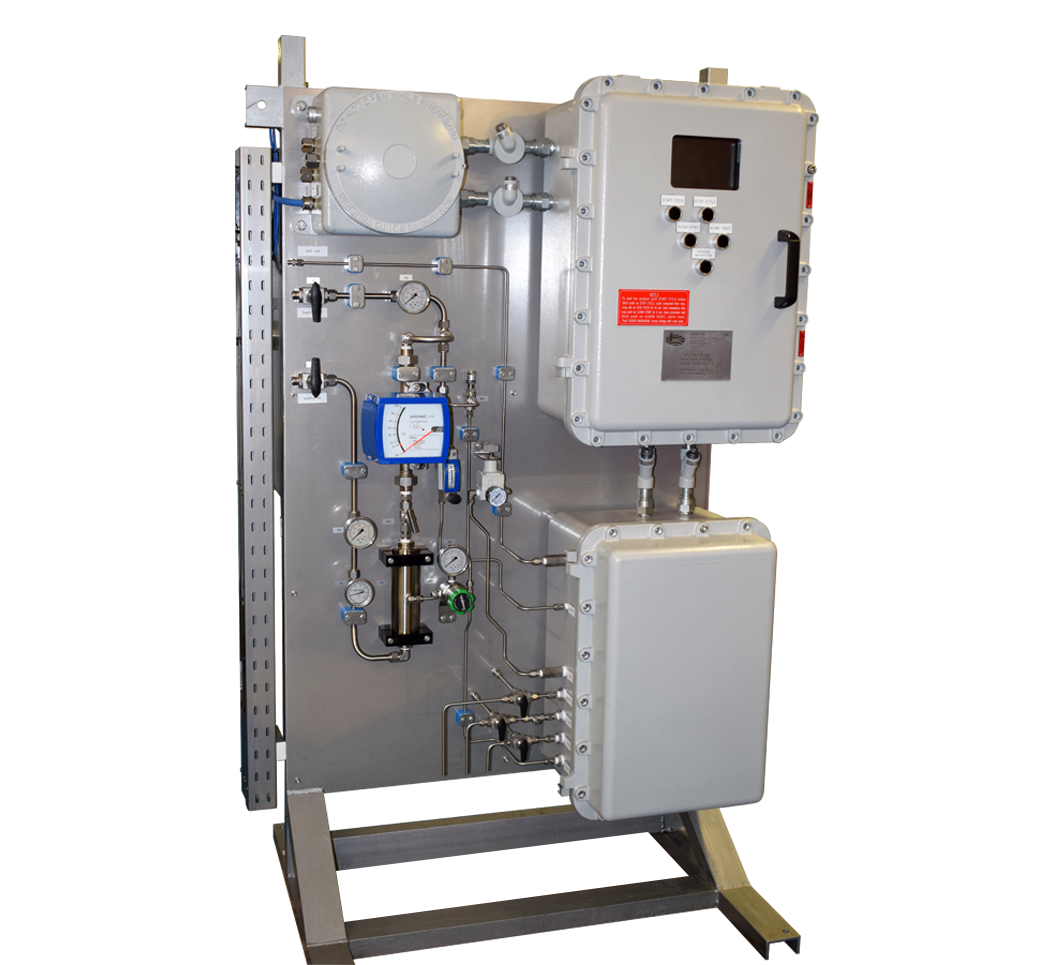

MOD-4100S On-line Salt in Crude Oil Analyzer

The MOD-4100S by Modcon Systems is designed to provide real-time analytical data of salt concentration in crude oils, based on ASTM D-3230 electrometric method — measuring conductivity when the sample is dissolved in a mixture of aromatic and alcoholic solvents.

Key Features

Accurate Salt Measurement

• Measures salt content in crude oil expressed in PTB or mg/L
• Configurable measurement range: 0-150 PTB (0-450 mg/L) or 0-400 PTB (0-1000 mg/L)
• Repeatability: ±2% full scale; correlates with ASTM D-3230
• Response time: ±6 minutes

Fully Automated Operation

• Automatic sampling, solvent dosing, mixing, measurement, and self-cleaning cycle
• Error messages displayed for any faulty status
• 7″ display; sample inlet pressure: 4-16 Bar; sample temperature: 10-60°C
• Low maintenance design with short-term ROI

Safe & Robust

• ATEX Zone 1 certified: Eex d II B+ H2 T4 Gc
• Ambient operating temperature: 5-35°C
• Available with heated or cooled enclosure for extreme ambient conditions
• Weight: 440 kg; dimensions (WxHxD): 980 x 1800 x 800 mm

Connectivity

• Output: 2 isolated 4-20 mA, free configurable
• Optional: RS485, Modbus RTU, Ethernet
• Power supply: 230 VAC, 50 Hz; power consumption: 1.3 KVA

Applications

• Crude oil refining and distillation
• Pipeline and storage quality monitoring
• Crude oil blending operations
• Upstream oil production
• Custody transfer and commercial quality verification
