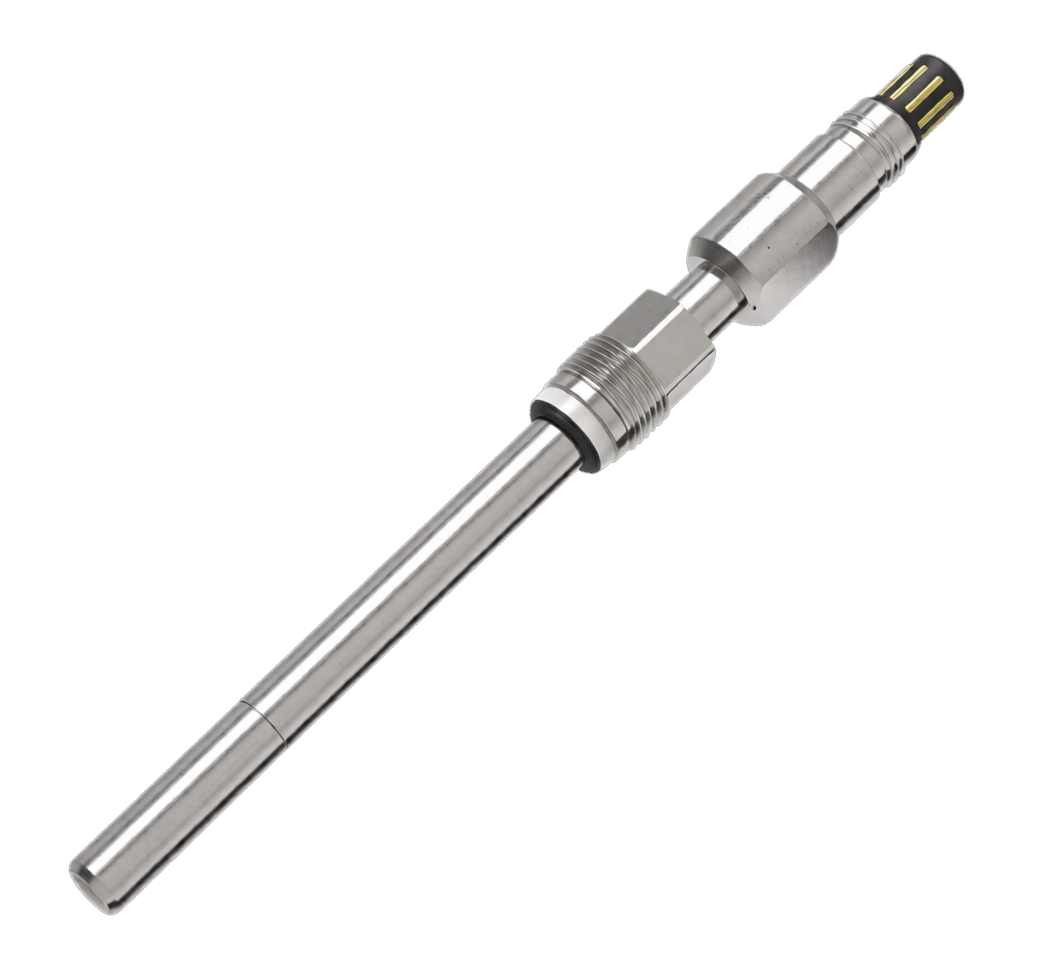

FermSense Amperometric Dissolved Oxygen Sensor

DynamicPE FermSense DO is a sterilizable amperometric dissolved oxygen sensor featuring an expandable inner silicone bladder that holds the electrolyte within a 316L stainless steel cage. During SIP processes or autoclaving, the internal bladder expands first, taking the pressure off the sensitive measurement area — allowing maximum electrolyte presence with minimum risk of sensor damage. The membrane cartridge design is easy to use and durable enough to be reused multiple times if necessary.

Key Features:

• Measuring principle: Electrochemical – Polarographic
• Sensor body: 316L Stainless Steel
• Expandable inner silicone bladder for SIP/autoclave pressure protection
• Membrane material: Silicone/Teflon reinforced with steel mesh
• Surface roughness of wetted parts: Max. Ra 0.4 µm (N5)
• O-ring wetted material: Silicone, EPDM (FDA and USP Class VI positive listed)
• Applications: Fermenters, Bio-reactors
